Perfetto To Analyze App Start Performance in React Native Android Apps

If you have built a big enough React Native app you will eventually find yourself asking why is your app slow to start on Android.

Haters will likely say that it’s React Native’s fault.

I disagree. I think this is actually caused by the type of Software Engineer working on React Native Apps. They rarely have a mobile first background which often causes features to be introduced without consideration for app startup performance.

By default React Native Android app is as fast as a native app since it is a native app.

Given that nothing should stop you from building a fast app. I usually tell folks that if we can measure we can improve it.

So how do you measure app start performance in a React Native Android app?

Using Perfetto

Perfetto is a tool for tracing and profiling Android apps. It can capture detailed performance data, including app start times, CPU usage, memory allocation, and more. This makes it an excellent choice for analyzing app start.

However, it’s abundance of features makes it actually hard to know how to get started.

What Can You Check In Perfetto?

Before showing how to do it, let me just highlight what you can get from this.

I suggest you check the following proccesses in the trace:

• main thread: You can see how long it took to initialize the app plus all the Choreagrapher calls to dispatch rendering tasks.
• create_react_co: This is a thread used to initialize the React Native context. Essentially the app won’t run until this is done. Also native packages intialized at app start will be visible here, so if you have a slow initializing native module you can see it here.
• mtq_js or mqt_v_js (new arch): This is the JavaScript thread, I usually check how long it took to start and if there are any blocking tasks here that I should investigate further.
• mqt_native_modu or mqt_v_native (new arch): this is the React Native modules thread where the native modules run. This will indicate to you any async native modules that are taking very long to run.
• createView (old arch, new arch use RenderThread’s DrawFrames): This event captures how many createView calls were made which can show you how early the first view triggered from React Native was called plus how many views were made.

With the above you should be able to identify what happened before the JS thread was initialized. Why did it take so long. What kind of tasks are impacting each thread and more.

The trace has a whole lot more information and this is just scratching the surface.

Now how do we capture this trace?

Capturing a Perfetto Trace

To view Systrace calls from react-native and your app’s processess you must add profileable attribute to your AndroidManifest.xml file:

  <profileable android:shell="true" />

You can then build your app in release mode. This is important because you want to capture a real user experience, not a debug one.

To make this easier I wrote the following script to facilitate starting the trace and pulling the file from the device. This does the following:

1. The script stores the Perfetto configuration.
2. Then it starts the Perfetto trace by calling adb shell perfetto
3. Then it pulls the trace file from the device using adb pull <file_path>.

To use the script copy the following script to a file called capture_systrace.sh locally.

#!/bin/bash

set -e

print_help() {
  echo "Usage: capture_systrace APP_ID [output_filename.pftrace]"
  echo
  echo "Starts a Perfetto systrace for the given APP_ID on a connected Android device."
  echo
  echo "Arguments:"
  echo "  APP_ID               The application ID to trace (e.g. com.example.myapp)"
  echo "  output_filename      Optional output filename (default: trace.pftrace)"
  echo
  echo "Options:"
  echo "  -h, --help           Show this help message and exit"
}

# Show help if requested
if [[ "$1" == "--help" || "$1" == "-h" ]]; then
  print_help
  exit 0
fi

# Validate input
if [ -z "$1" ]; then
  echo "Error: APP_ID is required."
  print_help
  exit 1
fi

APP_ID="$1"
OUTPUT_FILE="${2:-trace.pftrace}"
REMOTE_PATH="/data/misc/perfetto-traces/trace.pftrace"

CONFIG=$(cat <<EOF
buffers {
  size_kb: 131072
  fill_policy: DISCARD
}
data_sources {
  config {
    name: "linux.ftrace"
    ftrace_config {
      ftrace_events: "sched/sched_process_exit"
      ftrace_events: "sched/sched_process_free"
      ftrace_events: "task/task_newtask"
      ftrace_events: "task/task_rename"
      ftrace_events: "sched/sched_switch"
      ftrace_events: "power/suspend_resume"
      ftrace_events: "sched/sched_blocked_reason"
      ftrace_events: "sched/sched_wakeup"
      ftrace_events: "sched/sched_wakeup_new"
      ftrace_events: "sched/sched_waking"
      ftrace_events: "sched/sched_process_exit"
      ftrace_events: "sched/sched_process_free"
      ftrace_events: "task/task_newtask"
      ftrace_events: "task/task_rename"
      ftrace_events: "power/cpu_frequency"
      ftrace_events: "power/cpu_idle"
      ftrace_events: "power/suspend_resume"
      ftrace_events: "raw_syscalls/sys_enter"
      ftrace_events: "raw_syscalls/sys_exit"
      ftrace_events: "ftrace/print"
      atrace_categories: "adb"
      atrace_categories: "aidl"
      atrace_categories: "am"
      atrace_categories: "audio"
      atrace_categories: "binder_driver"
      atrace_categories: "binder_lock"
      atrace_categories: "bionic"
      atrace_categories: "camera"
      atrace_categories: "dalvik"
      atrace_categories: "database"
      atrace_categories: "gfx"
      atrace_categories: "hal"
      atrace_categories: "input"
      atrace_categories: "network"
      atrace_categories: "nnapi"
      atrace_categories: "pm"
      atrace_categories: "power"
      atrace_categories: "res"
      atrace_categories: "rro"
      atrace_categories: "rs"
      atrace_categories: "sm"
      atrace_categories: "ss"
      atrace_categories: "vibrator"
      atrace_categories: "video"
      atrace_categories: "view"
      atrace_categories: "webview"
      atrace_categories: "wm"
      symbolize_ksyms: true
      disable_generic_events: true
      atrace_apps: "$APP_ID"
    }
  }
}
data_sources {
  config {
    name: "linux.process_stats"
    process_stats_config {
      scan_all_processes_on_start: true
    }
  }
}
data_sources {
  config {
    name: "linux.sys_stats"
    sys_stats_config {
      stat_period_ms: 250
      stat_counters: STAT_CPU_TIMES
      stat_counters: STAT_FORK_COUNT
      cpufreq_period_ms: 250
    }
  }
}
data_sources {
  config {
    name: "android.log"
    android_log_config {
      log_ids: LID_DEFAULT
      log_ids: LID_STATS
      log_ids: LID_SYSTEM
    }
  }
}
data_sources {
  config {
    name: "android.surfaceflinger.frametimeline"
  }
}
duration_ms: 10000
EOF
)

echo "Starting Perfetto trace for app: $APP_ID..."
echo "$CONFIG" | adb shell perfetto -c - --txt -o "$REMOTE_PATH"

echo "Pulling trace to ./$OUTPUT_FILE"
adb pull "$REMOTE_PATH" "$OUTPUT_FILE"

echo "Trace saved to $OUTPUT_FILE"

The help output explains how to use.

~/ ./capture_systrace.sh --help                                                                                                    17ms
Usage: capture_systrace APP_ID [output_filename.pftrace]

Starts a Perfetto systrace for the given APP_ID on a connected Android device.

Arguments:
  APP_ID               The application ID to trace (e.g. com.example.myapp)
  output_filename      Optional output filename (default: trace.pftrace)

Options:
  -h, --help           Show this help message and exit

By running ./capture_systrace.sh com.example.myapp, you can capture a Perfetto trace for your React Native app. The trace will be saved as trace.pftrace in the current directory.

Tips:

1. Always use a release like build for tracing
2. Start the trace then run the app.
3. You can change the scripts duration_ms to capture longer or smaller trace if needed.

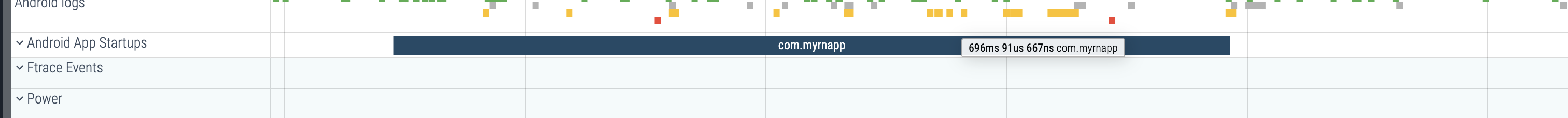

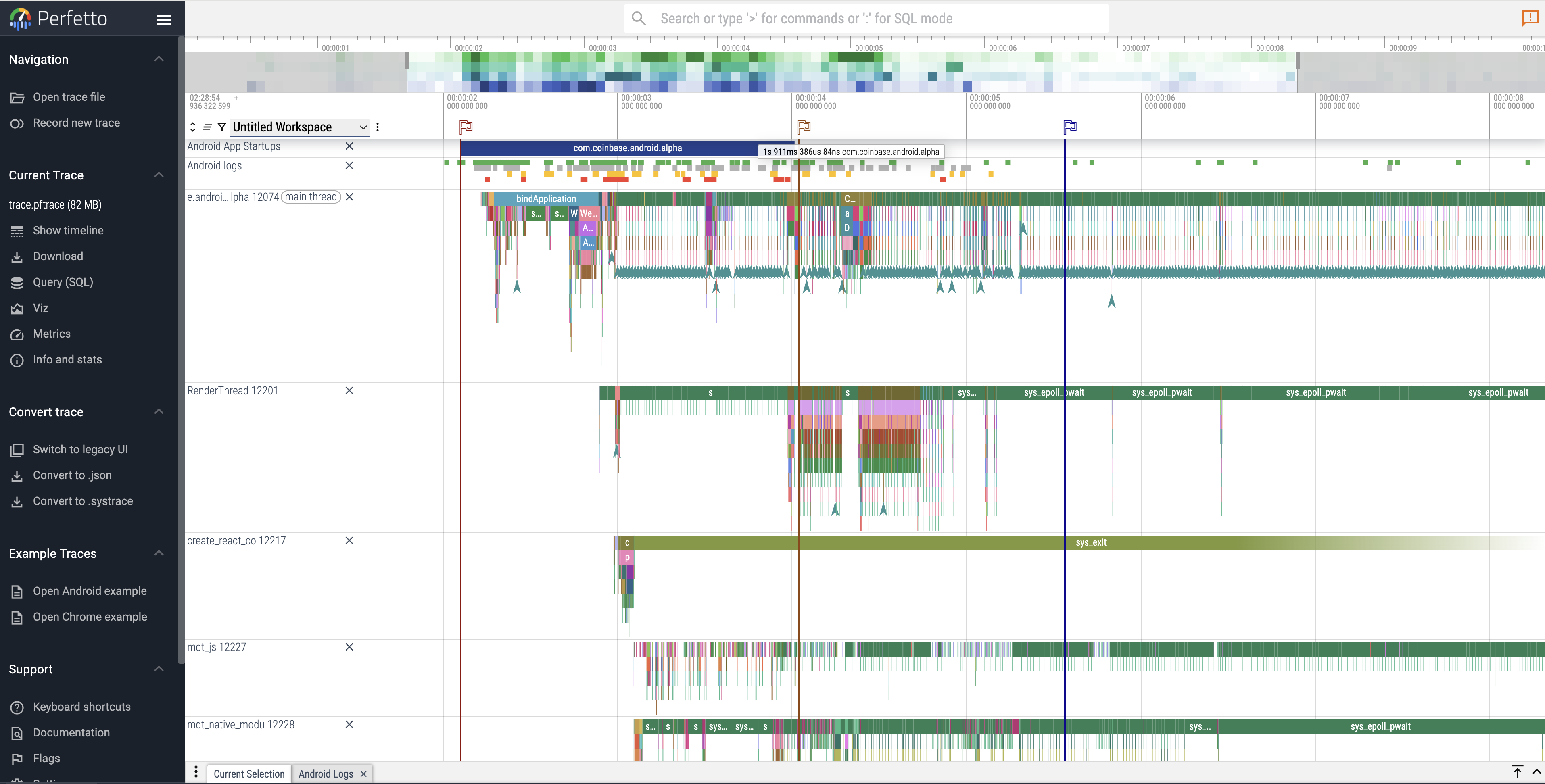

Open the trace in the Perfetto UI to analyze it:

Finally, see this cool trace analysis by Andrei Shikov done on the Bluesky app.
